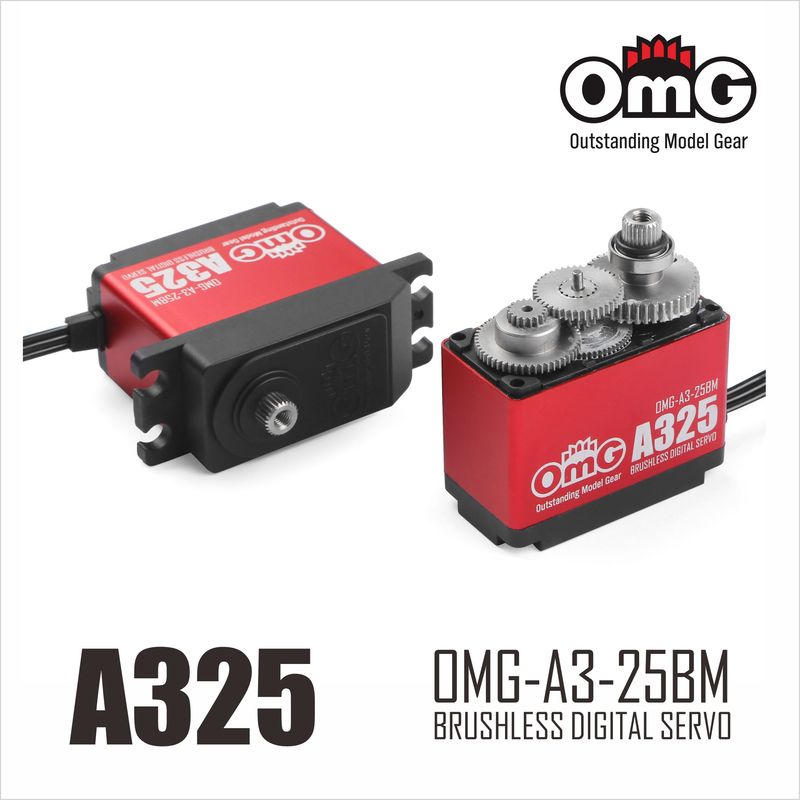

Standard profile , high voltage brushless digital servo, dust & water splash resistacne.Middle cover in metal, top and bottom cover in plastic, steel gear,including 1pcs 25T CNC metal servo arm.

Operating speed:

4.8V-0.065ec/60°

6.0V-0.050sec/60°

7.4V-0.047sec/60°

Stall torque:

4.8V-18.5kgf.cm(257oz-in)

6.0V-22.0kgf.cm(306oz-in)

7.4V-23.8kgf.cm(331z-in)

Gear Material:Stainless steel

Horn gear spline:25T Φ5.9

Size:1.57x0.79x1.57in

Case Material:Middle cover in metal, top and bottom cover in plastic

Bearing:2BB

Motor type:Brushless

Operating Temperature:-15℃~+70℃

Operating travel :≈180±10°

Frequency:1520uS

Refresh Rate:333Hz

Pules width range :500-2500μsec

Dead band width:2μsec

Connector wire length:265mm

Waterproof level:Dust & Water Splash Resistacne

Programmable:No
